What Is a COB LED?
COB stands for Chip-on-Board. In a COB LED, multiple LED chips are mounted closely on one substrate, creating a compact light source.
COB LEDs are useful when the fixture needs strong optical control, focused light, and high lumen density from a small area.
What Is an SMD LED?
SMD stands for Surface-Mounted Device. An SMD LED is an individual LED package mounted directly onto a PCB.
SMD LEDs give designers more flexibility because multiple LEDs can be arranged in different patterns across the board. Common SMD package types include 2835, 3030, and 5050.
COB vs SMD LED: Quick Comparison
| Factor | COB LED | SMD LED |
|---|---|---|
| Full form | Chip-on-Board | Surface-Mounted Device |
| Structure | Multiple LED dies on one substrate | Individual LED packages on PCB |
| Light output | Compact and high-density | Distributed and flexible |
| Best for | Focused beam control | Uniform or wide illumination |
| Common uses | Downlights, spotlights, track lights, high-bay lights | Panel lights, bulbs, tubes, streetlights, linear lights |

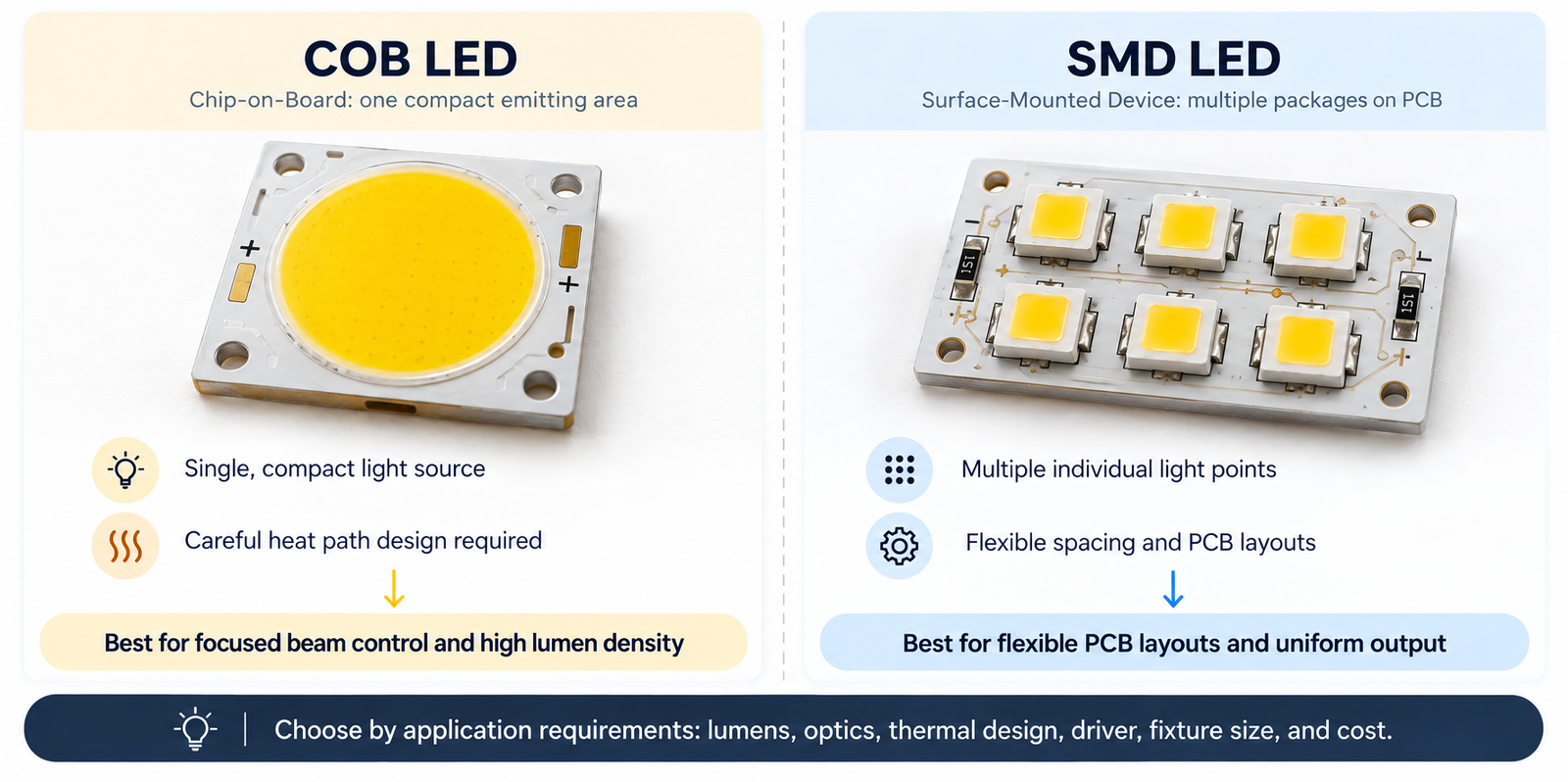

COB vs SMD LED
Package structure, light source behavior, and best-fit applications
COB and SMD LED Applications
COB and SMD LEDs can both be used in professional lighting, but their best-fit applications are different because of beam control, source size, and layout flexibility.
COB: Focused Lighting
Best for compact fixtures that need controlled beams and high lumen density.
- Downlights and spotlights
- Track and accent lighting
- High-bay and selected floodlights
SMD: Distributed Lighting
Best for flexible PCB layouts and wide, uniform illumination.
- Panel lights, bulbs, and tubes
- Streetlights and linear lights
- Decorative and general lighting
Indoor
Outdoor
Hospitality
General IlluminationMain Difference Between COB and SMD LED
The main difference is the package structure. COB LED combines many LED dies into one compact light source. SMD LED uses multiple separate LED packages placed across a PCB.
This affects beam control, thermal design, PCB layout, fixture size, and final lighting performance.
Brightness and Efficiency
COB is not always brighter than SMD, and SMD is not always more efficient than COB.
Brightness depends on lumen output, drive current, heat dissipation, optics, and fixture design. Efficiency depends on luminous efficacy, usually measured in lumens per watt (lm/W).
For a fair comparison, always check the actual datasheet and test the complete luminaire, not just the package type.
Which One Should You Choose?
Choose COB LED If You Need
- Compact light source
- Focused beam angle
- Directional lighting
- High lumen density
- Spotlight or downlight-style output
Choose SMD LED If You Need
- Flexible PCB layout
- Wider light distribution
- Uniform illumination
- Linear or panel-style lighting
- Multiple LED placement options
For streetlights, floodlights, and high-bay lights, both COB and SMD can work. The better option depends on optics, thermal design, power, and required light distribution.
Common Mistakes to Avoid
- Assuming COB is always better
- Assuming SMD is always more efficient
- Choosing only by LED package name
- Ignoring heat dissipation
- Comparing only LED price instead of total system cost
- Treating 2835, 3030, or 5050 as a quality rating
FAQs
Is COB better than SMD LED?
Not always. COB is better for compact and directional lighting, while SMD is better for flexible layout and distributed lighting.
Which is brighter, COB or SMD?
Neither is automatically brighter. Compare actual lumen output, wattage, thermal condition, and optical design.
Which is more efficient, COB or SMD?
Efficiency depends on the specific LED model and fixture design. Check lm/W values under similar operating conditions.
Which LED is better for downlights?
COB is commonly used for downlights because it provides a compact light source and good beam control.
What do 2835, 3030, and 5050 mean?
They mainly refer to SMD LED package sizes. The number does not automatically define brightness or quality.
